HDMI/RS232 over Cat&Fiber Extender+Matrix switch

HDMI/RS232 over Cat&Fiber Extender+Matrix switch

1.       supports CAT.5e/6 & fiber optic

2.       supports video wall (up to 8×8 ) and easy to configure by web UI

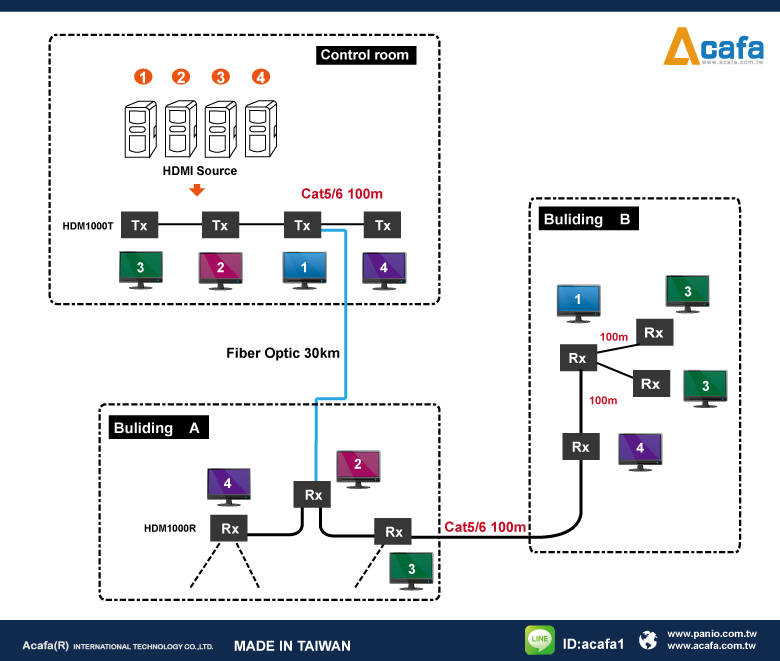

3.       Matrix and daisy chain HDMI extension

4.       support IR and bi-directional RS-232 over IP

5.       Made in Taiwan with highest quality

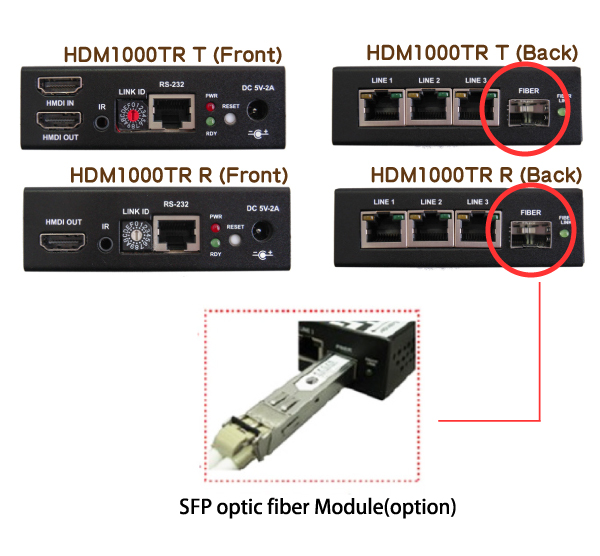

HDM1000TR HDMI HD Extender - Transmitter
HDM1000TR HDMI HD Extender - Receiver
2 * DC 5V / 2A  Power Adaptor

MODLE NAME HDM1000TR (Transmitter) HDM1000TR (Receiver)
 Console Connectors
 HDMI Output
HDMI ( Female )
HDMI ( Female )
RS-232 Control Port
RJ-45
RJ-45
PC Connectors
 HDMI Input
HDMI ( Femalle )
N/A
Extension Port
 RJ-45
 Full HD Video1080p @30Hz / Audio Extension + IR + RS-232
RJ-45
3 ( Line in or Line Out )
3 ( Line in or Line Out )
Fiber Link
1
1
Daisy Chain
Yes, up to 10 layers
Yes, up to 10 layers
Audio
Supports High Definition Audio (HD) 5.1/6.1/7.1 Surround Sound
IR
Unidirectional
LED Indicators
Local
Power
Red LED
Link
Green LED
Remote
Power
Red LED
Link
Green LED
DDC Supported
DDC, DDC2, DDC2B
Extension Cable Type & Length
 CAT.5e/CAT.6 Max.Length:100m
Max Video Resolution
1920x1200@60Hz, Full HD 1080p@30Hz
Wide Screen Supported
Yes
OS Compatibility
OS Independent
Power Supply
External DC 5V / 2A Power Supply
Dimension ( L x W x H )
155 x 90 x 28.5 mm
Weight
430g
425g
Housing material
Metal
Operating Temperature
32~ 122°F  (0~ 50°C )
Humidity
0%~80%RH
